10 Button Programmable Wall Plate Controller

SKU: ND-WPC-10

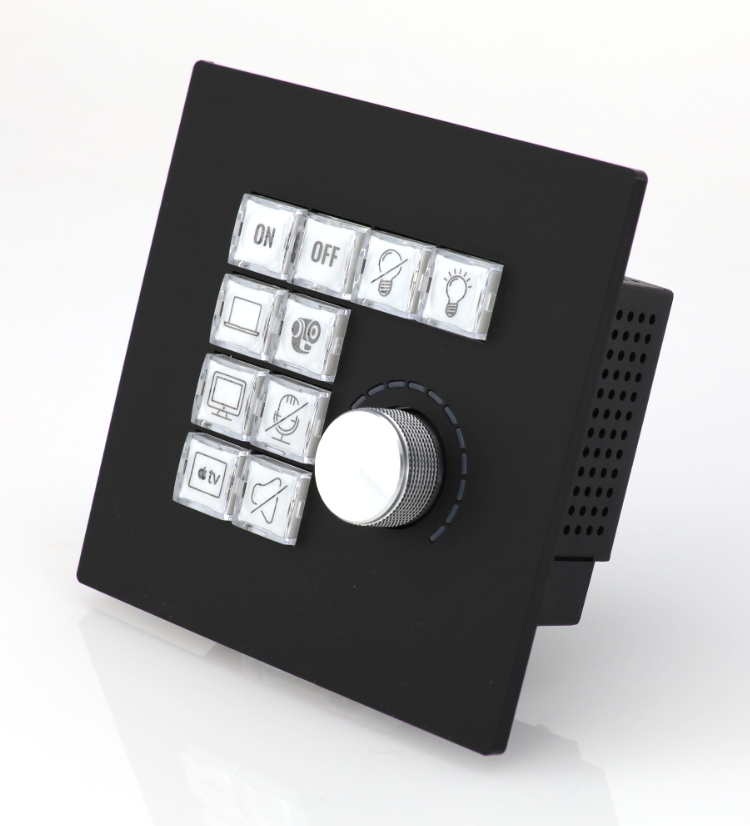

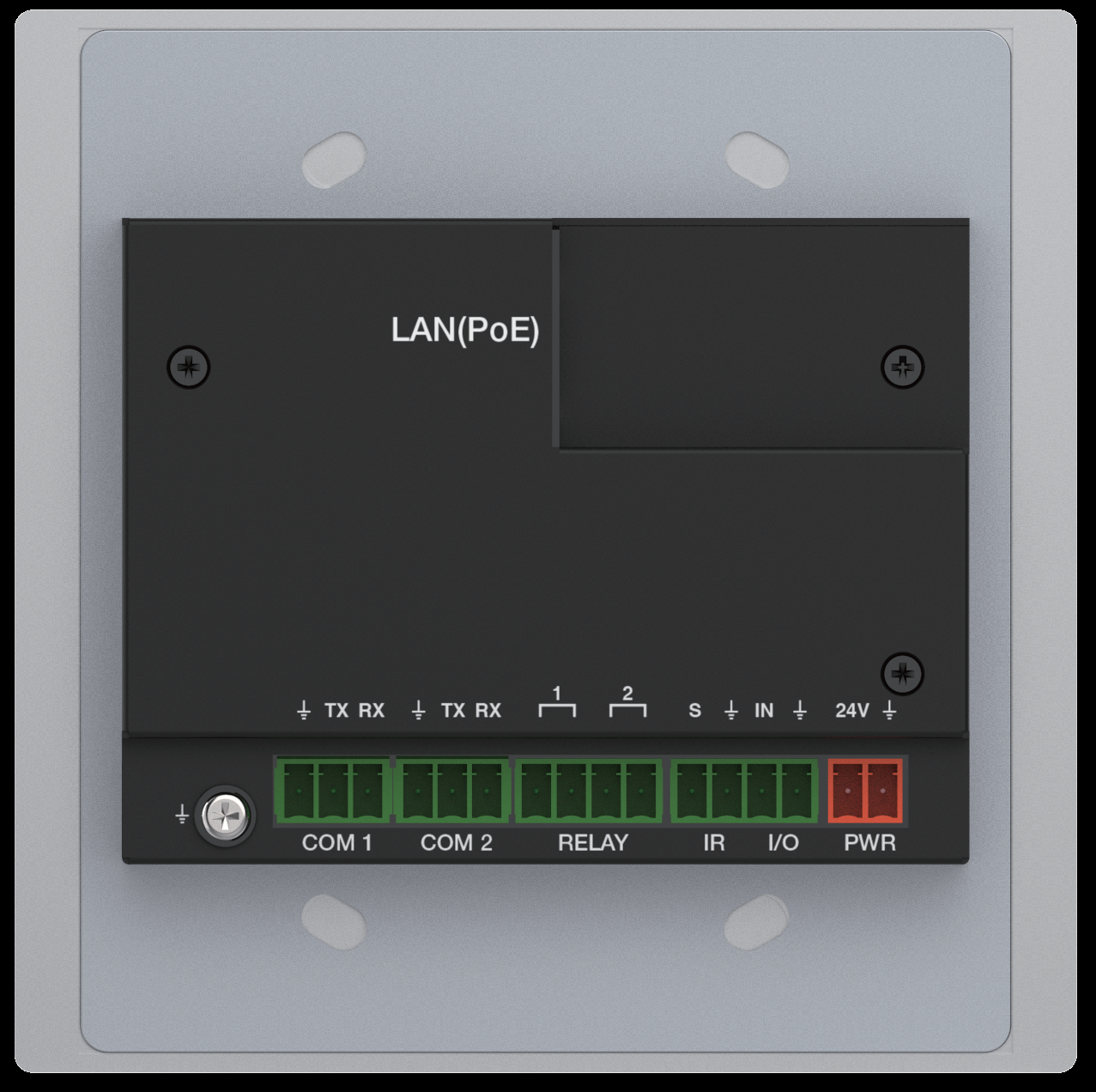

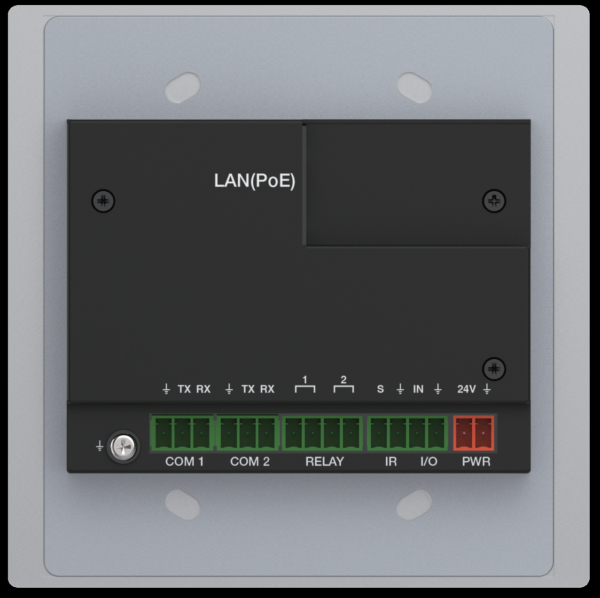

This is a 10 button wall plate controller featuring LAN, 2 x RS232, 2 x Relay, 1 x IR, 1 x IO. It can be powered via POE or 24v Plug Pack.

Key Features

2 x two-way serial ports.
1 x IR output/one-way serial port.
2 x low voltage contact closure relays.
1 digital input port to receive sensor signals
10 programmable buttons with white or green led illumination configurable.
1 x programmable knob (with LED bar graph)
LAN capable TCP/UDP/Web Sockets/ HTTP
Web server for on-line firmware upgrade and configuration
Compliant with standard network communication protocols
Password protection against unauthorized accesses
Built-in sync clocks
Supports factory reset

ND-WPC10 Manual

Package Contents

1 × Programmable Control Panel
2 × 3pin-3.81mm Phoenix Connectors (male)
2 × 4pin-3.81mm Phoenix Connectors (male)
2 × Symbol Films (button icon)
10 × Key Caps
1 × 24V 1A Multinational Power Supply (2pin-3.81mm Phoenix Connector
1 × User Manual

ND-WPC10 Manual

This is a 10 button wall plate controller featuring LAN, 2 x RS232, 2 x Relay, 1 x IR, 1 x IO. It can be powered via POE or 24v Plug Pack.

Package Contents

1 × Programmable Control Panel
2 × 3pin-3.81mm Phoenix Connectors (male)
2 × 4pin-3.81mm Phoenix Connectors (male)
2 × Symbol Films (button icon)
10 × Key Caps
1 × 24V 1A Multinational Power Supply (2pin-3.81mm Phoenix Connector
1 × User Manual
