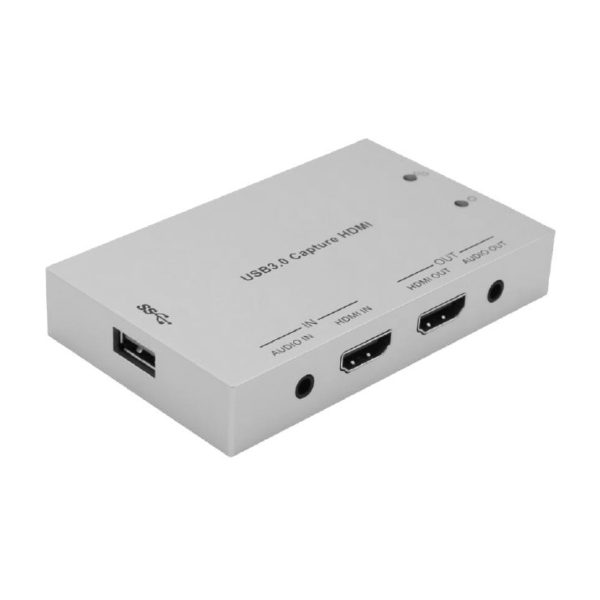

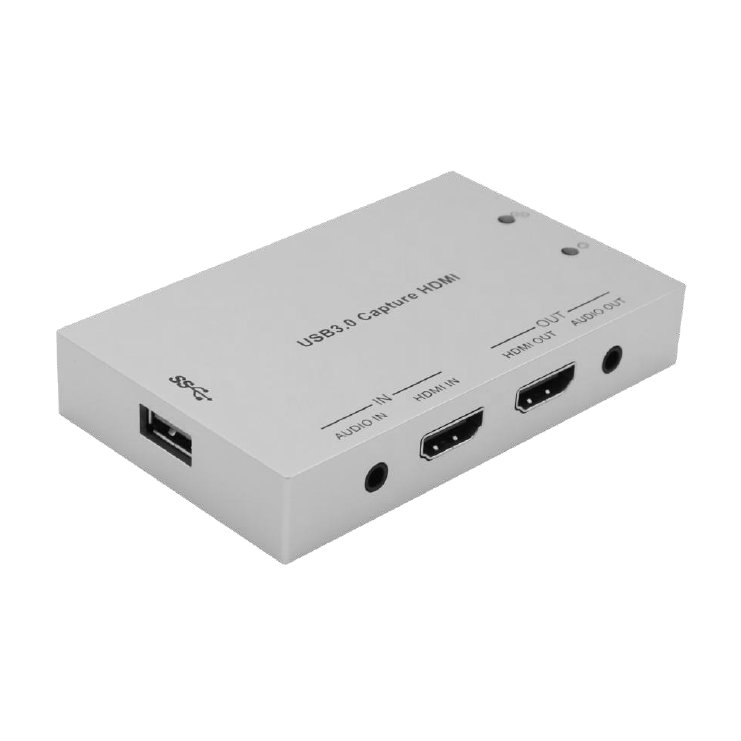

HDMI to USB3 Video Capture with audio
HDMI to USB3 Video Capture with audio - Image 2

HDMI to USB3 Video Capture with audio

SKU: ND-HDMI-USB

Deprecated: Function woocommerce_get_page_id is deprecated since version 3.0! Use wc_get_page_id instead. in /var/www/html/wp-includes/functions.php on line 6114 Login to order

This USB HDMI Capture device can capture video signals up to 1080p60Hz. The HDMI input with loop output supports resolutions up to 4K2K@60HZ(4:4:4). It includes a analog audio extraction from HDMI source as well as analog audio input. It’s plug and play so no drivers are required.

Key Features

  • Supports HDMI video input capture and HDMI loop output.
  • Supports resolution 480i~1080p60Hz format video capture.
  • Supports resolution 4K2K@60Hz (Down Scaler)->1080p60Hz video capture.
    (Attention: 4K2K@50/60Hz 4:2:2 resolution not supported down scaler function.)
  • HDMI input and HDMI loop output supports HDMI 2.0, HDCP 2.2, resolution the maximum up to 4K2K@60Hz(4:4:4).
  • Supports analog stereo audio input. (Double audio inputs selected to capture audio.)
  • Supports analog stereo audio extract output from HDMI source.
  • Compatibles Windows, Linux, OS X operating systems.
  • USB3.0 about transmission rate up to 300~350MB/s.
  • Compatible with Skype, Teams, VLC, OBS, XSPLIT and AMCAP etc.
  • Simple plug and play, no drive and setting installation required.

Package Contents

  • 1× HDMI to USB3.0 Video Capture Plus
  • 1× USB3.0 male to Type-A male Cable
  • 1× User Manual
