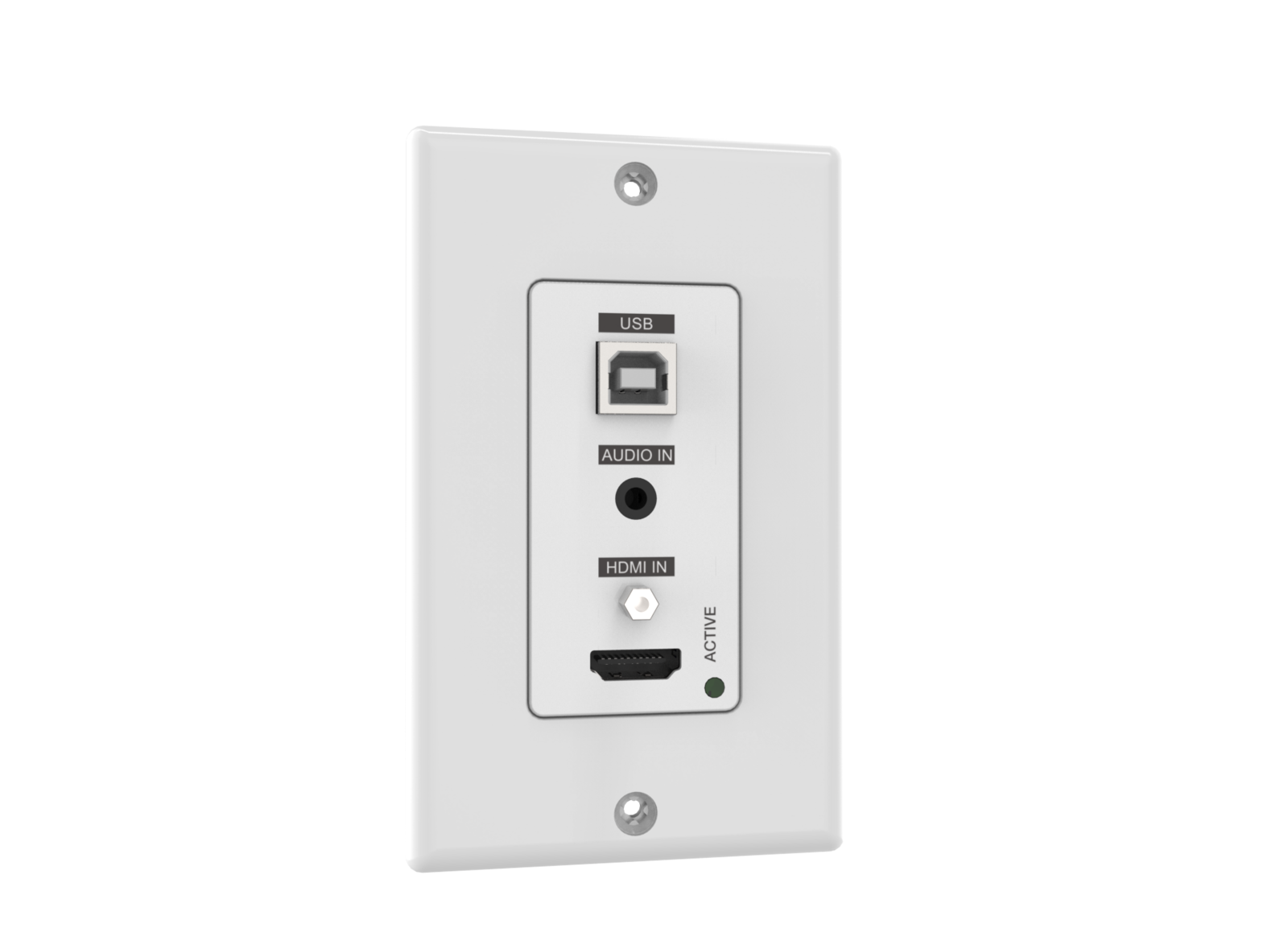

Single Gang HDMI, Audio, USB extender over 70m CAT5/6 with RX

SKU: ND-WP-HAU-70-KT

Deprecated: Function woocommerce_get_page_id is deprecated since version 3.0! Use wc_get_page_id instead. in /var/www/html/wp-includes/functions.php on line 6114 Login to order

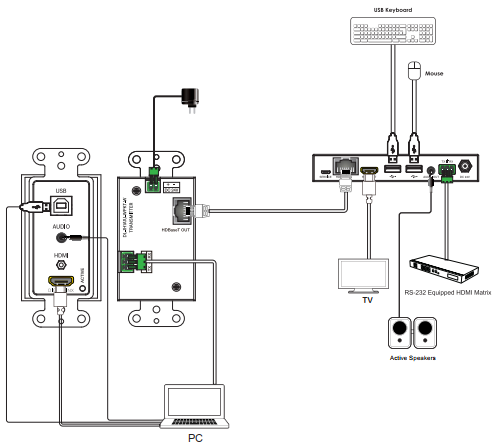

This is a Single Gang HDMI wall plate kit which can transmit HDMI signal over single CAT6/6a/7 to the distance up to 40m for 4K2K@50/60Hz(4:2:0) and 4K30Hz(4:4:4), or 1080P up to 70m. It also supports one independent analog audio, one-way RS232 signal pass-through with HDMI signal and USB unidirectional signal transmission function. This wall plate kit is an ideal solution for classroom and meeting room.

FEATURES AND BENEFITS

  • Complete set includes Wall plate TX, RX, Power supply, cover plate
  • Extend HDMI up to 4K, USB2.0, & Analog Audio signals up to 70 meters. HDCP2.2 Compliant
  • Extends RS232 & 1 way PoC from RX to wall plate TX
  • HDMI, audio, USB 2.0 high-speed extender set
  • Supports video up to 4K2K@30Hz (4:4:4), 4K2K@60Hz (4:2:0) 10.2G
  • Pass-through 3.5mm analog audio passes audio independent of HDMI port
  • Extend USB 2.0 high speed up to 190Mbps

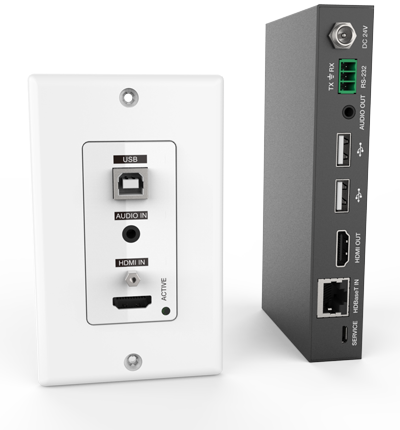

  • Receiver features HDMI output, 3.5mm audio output, and 2 USB-A ports
  • Supports HDCP 2.2 and HDCP 1.4 compliant
  • Supports all HDMI audio formats
  • Single cable 40m for 4K / 70m for 1080P
  • RS232 & CEC pass-through
  • Dedicated 3.5mm audio independent from the HDMI signal
  • Remote power from receiver to wall plate transmitter

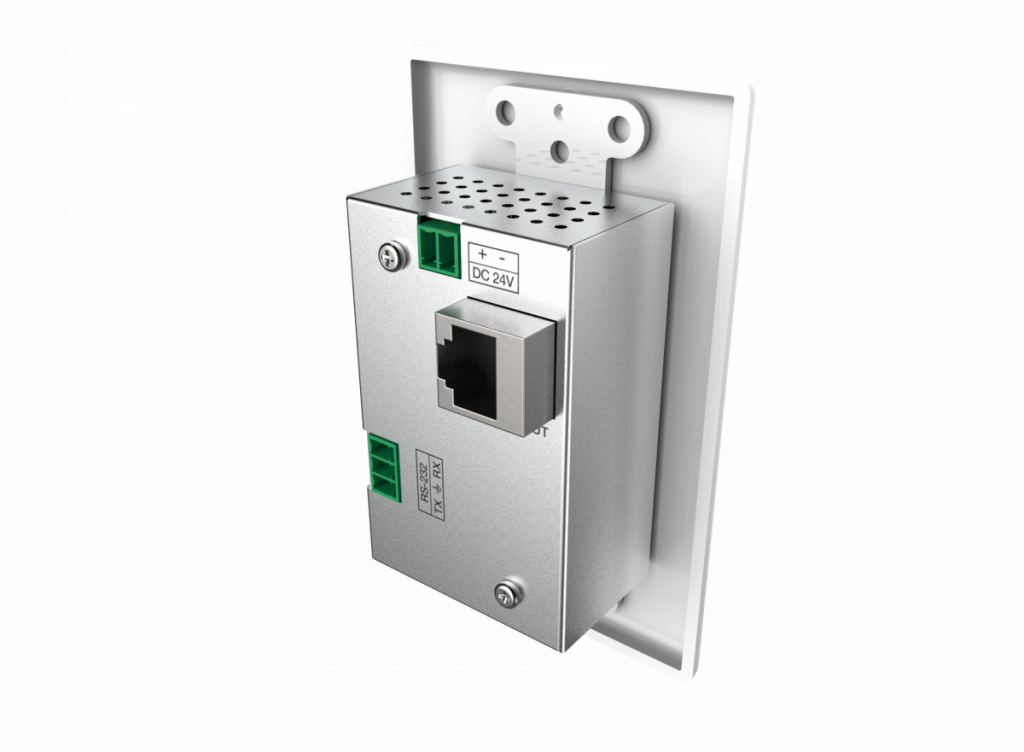

  • TX is standard US 1-gang decorator format
ND-WP-HAU-70-KT Manual

Package Contents

  • 1× 4K HDMI Wall Plate Transmitter
  • 1× HDBaseT Receiver
  • 1× Phoenix connector (3 pins)
  • 1× Phoenix connector (2 pins)
  • 1× 24V/1A power adapter
  • 1× Cover plate
  • 2× Rack ears
  • 1× User Manual

FEATURES AND BENEFITS

  • Complete set includes Wall plate TX, RX, Power supply, cover plate
  • Extend HDMI up to 4K, USB2.0, & Analog Audio signals up to 70 meters. HDCP2.2 Compliant
  • Extends RS232 & 1 way PoC from RX to wall plate TX
  • HDMI, audio, USB 2.0 high-speed extender set
  • Supports video up to 4K2K@30Hz (4:4:4), 4K2K@60Hz (4:2:0) 10.2G
  • Pass-through 3.5mm analog audio passes audio independent of HDMI port
  • Extend USB 2.0 high speed up to 190Mbps
  • Receiver features HDMI output, 3.5mm audio output, and 2 USB-A ports
  • Supports HDCP 2.2 and HDCP 1.4 compliant
  • Supports all HDMI audio formats
  • Single cable 40m for 4K / 70m for 1080P
  • RS232 & CEC pass-through
  • Dedicated 3.5mm audio independent from the HDMI signal
  • Remote power from receiver to wall plate transmitter
  • TX is standard US 1-gang decorator format
ND-WP-H-18G70-KT Manual

Package Contents

  • 1 ? 18Gbps HDMI over HDBaseT Wall Plate Extender (Transmitter)
  • 1 ? 18Gbps HDMI over HDBaseT Extender (Receiver)
  • 1 ? IR Blaster cable (1.5 meters)
  • 1 ? 20~60KHz IR Receiver cable (1.5 meters)
  • 2 ? Mounting Ears
  • 2 ? 3-pin Phoenix connector
  • 1 ? 24V/1A Locking Power Adaptor
  • 1 ? User Manual
